AITOP 512Ch 5V3A/6A/10a Battery Capacity tester 18650/21700/32700 32140 Charge Discharge cycler

• AITOP 512Ch 5V3A/6A/10a Battery Capacity tester 18650/21700/32700 32140 Charge Discharge cycler

•


• AITOP 512 Channel 5V3A/6A Cylindrical Battery Capacity Cabinet 18650/21700/26650/32700 Cell Charge Discharge Tester

• High Precision 512CH Li-ion Battery Testing Cabinet 5V 3A/6A for Cylindrical Cell Sorting & Aging

• AITOP 5V Series 512-Channel Capacity Grading Cabinet for Lithium Battery 18650 21700 Cycle Test

• 512-Channel 5V 3A/6A Battery Formation & Capacity Cabinet with Computer Control & 4-Wire Measurement

• Modular 512 Channel Lithium Battery Charge Discharge Tester Cabinet for Lab Testing & Small Batch Production

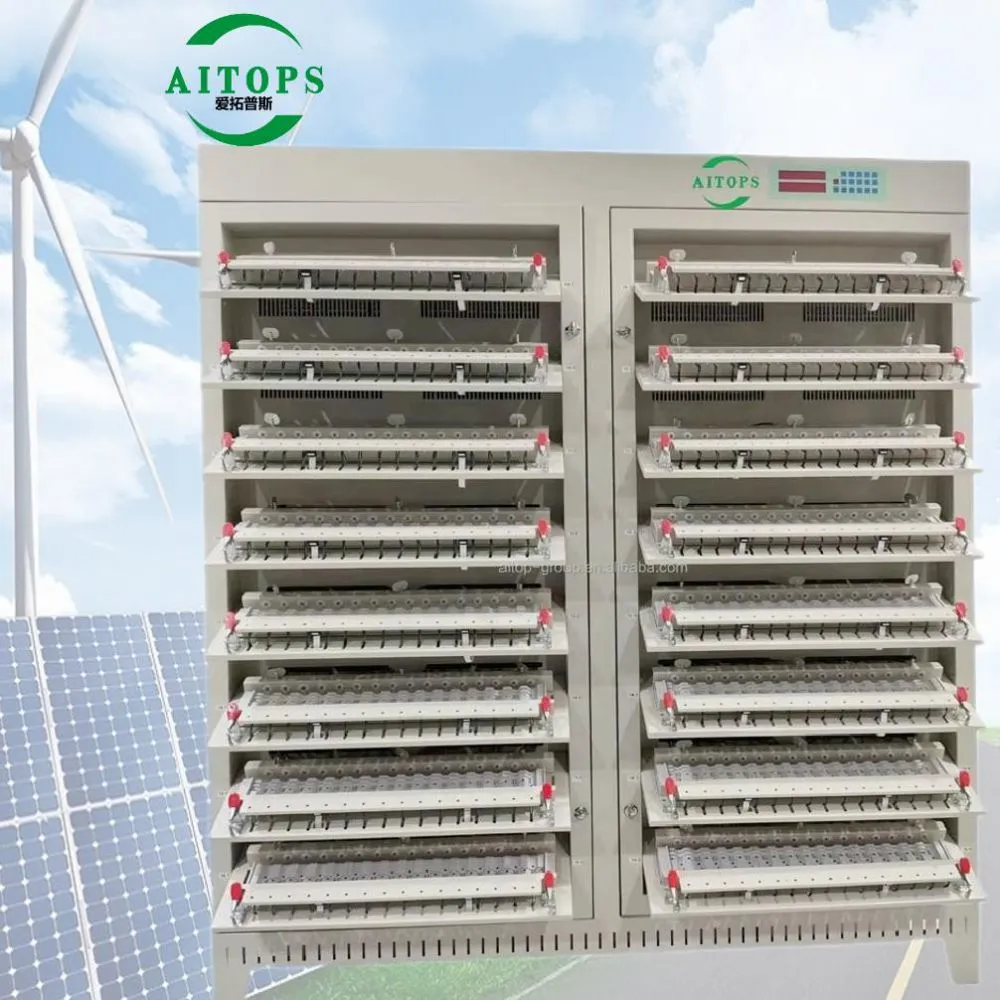

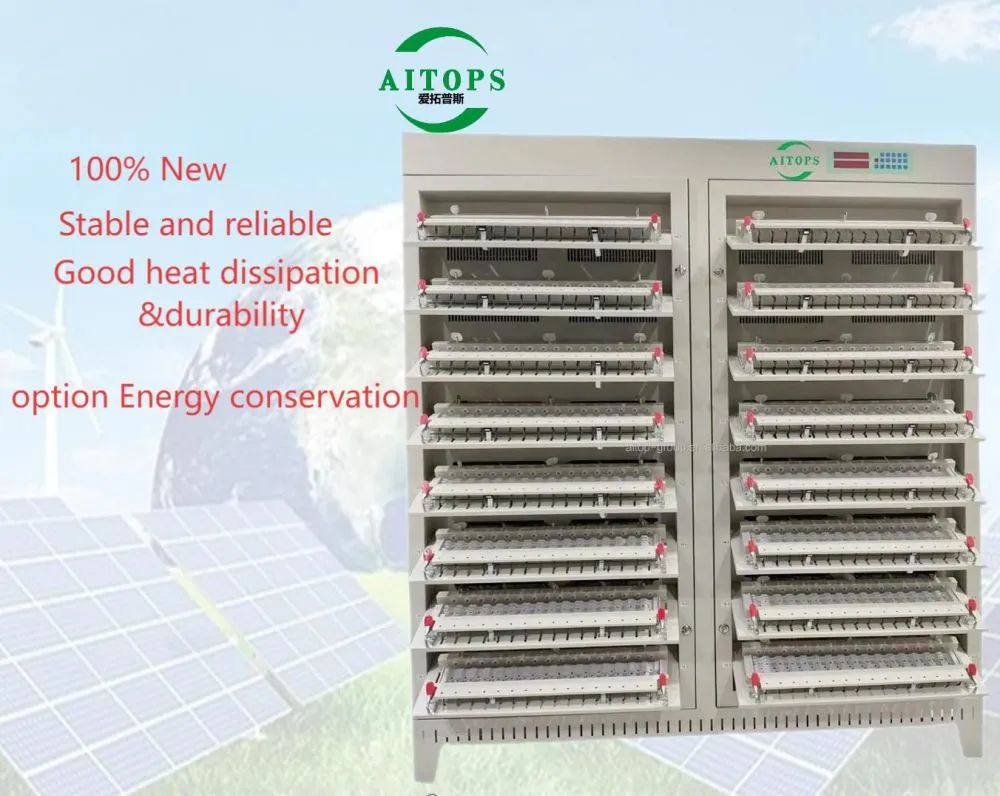

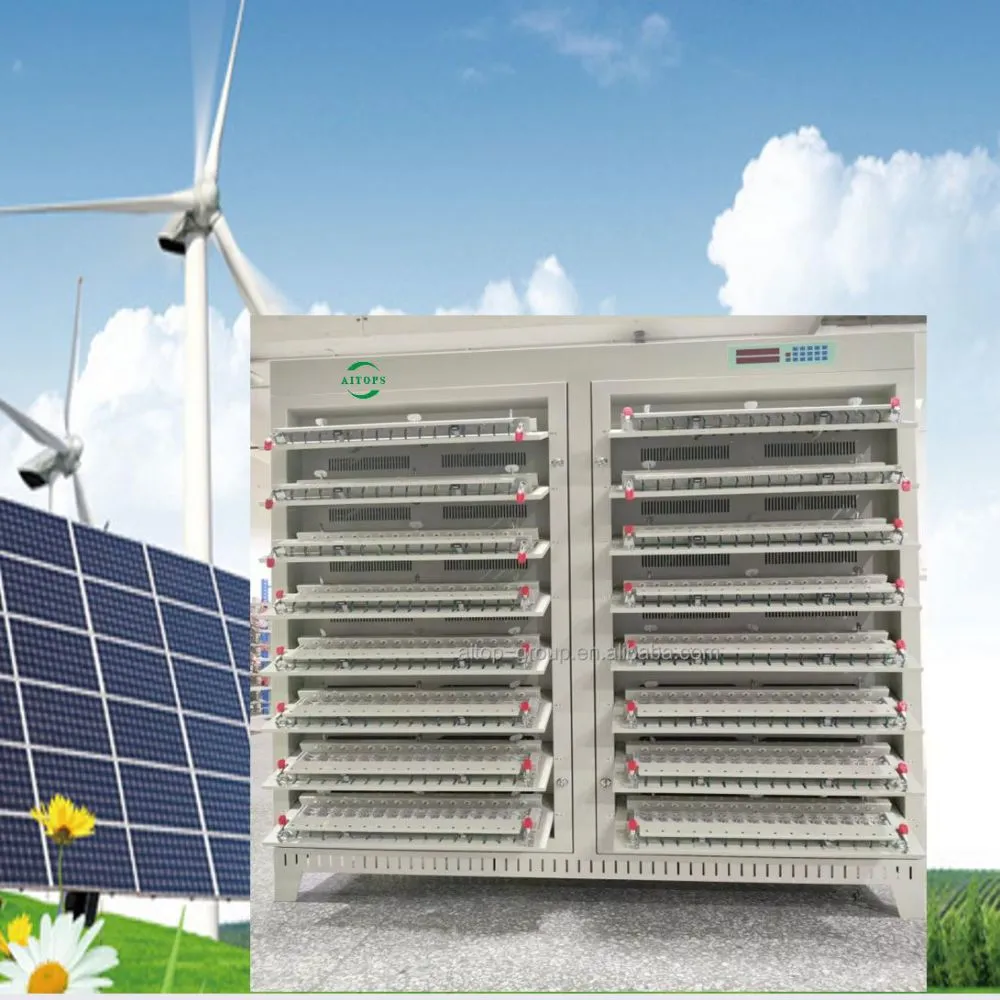

AITOP 512-Channel 5V Series Capacity Cabinet, a high-precision testing solution designed for cylindrical lithium-ion batteries including 18650, 21700, 26650, and 32700 cells. Built for battery factories, R&D labs, and recycling facilities, this cabinet delivers reliable performance for cell sorting, formation, aging, and cycle life testing.

1 .Core Performance & Precision

• Equipped with 512 independent channels, each supporting multi-mode operation (CC/CV charge, pause, discharge) with flexible 64-step / 256-cycle programmable logic, enabling fully automated, unattended testing workflows.

• Adopts 4-wire measurement technology for ultra-high accuracy: Voltage measurement accuracy up to ±0.05%FS, current accuracy ±0.1%FS, and current range covering 30mA–3000mA/6000mA (3A/6A models). Time resolution reaches 1 second with ±0.1% accuracy, ensuring stable and repeatable test results.

• Features seamless power-off protection: The system automatically saves test data during unexpected power cuts and resumes testing from the interrupted point, eliminating data loss and rework risks.

2  Modular & Reliable Design

• Modular hardware architecture for easy maintenance and scalability, reducing downtime and long-term operational costs.

• Industrial-grade design with stable performance under continuous operation, supporting AC380V±10% power input with low noise and low power consumption.

• Built-in full protection mechanisms including over-voltage, over-current, over-temperature, and short-circuit protection, ensuring safety for both batteries and equipment.

3. Smart Control & Data Management

• Computer-controlled system with real-time scanning and monitoring of all channels, supporting remote operation and batch data processing.

• Triggered data logging by ΔT, ΔV, and ΔI, with comprehensive test data export functions for quality traceability and analysis.

• Compatible with standard communication protocols (RS485) for seamless integration with factory automation systems.

4 Wide Application ScenariosIdeal for:

• Lithium-ion cell formation and capacity grading for 18650/21700/26650/32700 batteries

• Battery pack aging and performance validation

• Laboratory R&D for new material and cell performance testing

• Battery recycling classification and residual capacity testing

• Small-batch production quality control

•


Built to meet the rigorous demands of the lithium battery industry, the AITOP 512-channel capacity cabinet combines high precision, reliability, and scalability to help you optimize production efficiency and ensure product quality.

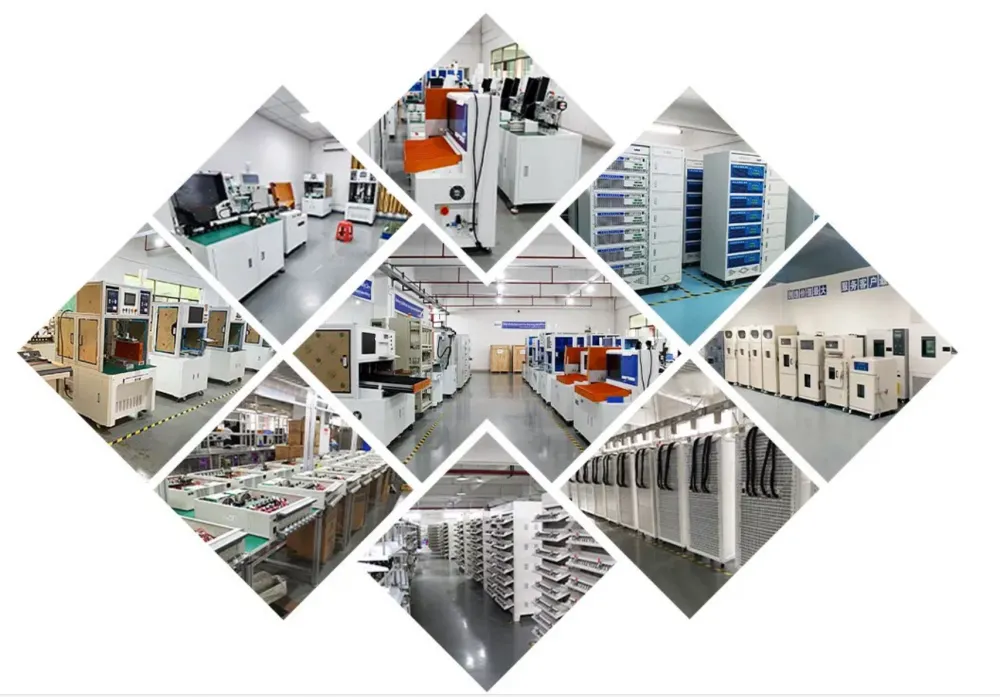

Shenzhen Aitop Intelligent Equipment Co., Ltd. is a professional high-tech enterprise specializing in R&D, manufacturing, and sales of lithium-ion battery testing equipment. With over years of experience in the new energy industry, we are committed to providing high-quality, reliable testing solutions for cylindrical, pouch, and prismatic lithium batteries, covering formation, grading, aging, and cycle life testing processes.

Our core product lines include multi-channel capacity cabinets, charge-discharge testers, battery formation systems, and customized testing solutions for 18650/21700/26650/32700 cylindrical cells, polymer batteries, and power battery packs. All products are designed with high-precision measurement technology, modular structure, and intelligent control systems to meet the diverse needs of battery factories, R&D institutions, and recycling enterprises worldwide.

At Aitop, we adhere to the principle of "quality first, innovation-driven development". Our team of experienced engineers continuously optimizes product performance, and we strictly implement ISO quality management standards in every production process. We also provide comprehensive after-sales services including installation guidance, technical training, and 24/7 remote support to ensure smooth operation of our equipment for global customers.

With a customer-oriented mindset and strong technical capabilities, Aitop has built long-term cooperative relationships with clients in Asia, Europe, North America, and other regions. We aim to become your trusted partner in lithium battery testing, helping you improve production efficiency, reduce costs, and ensure product safety and reliability.

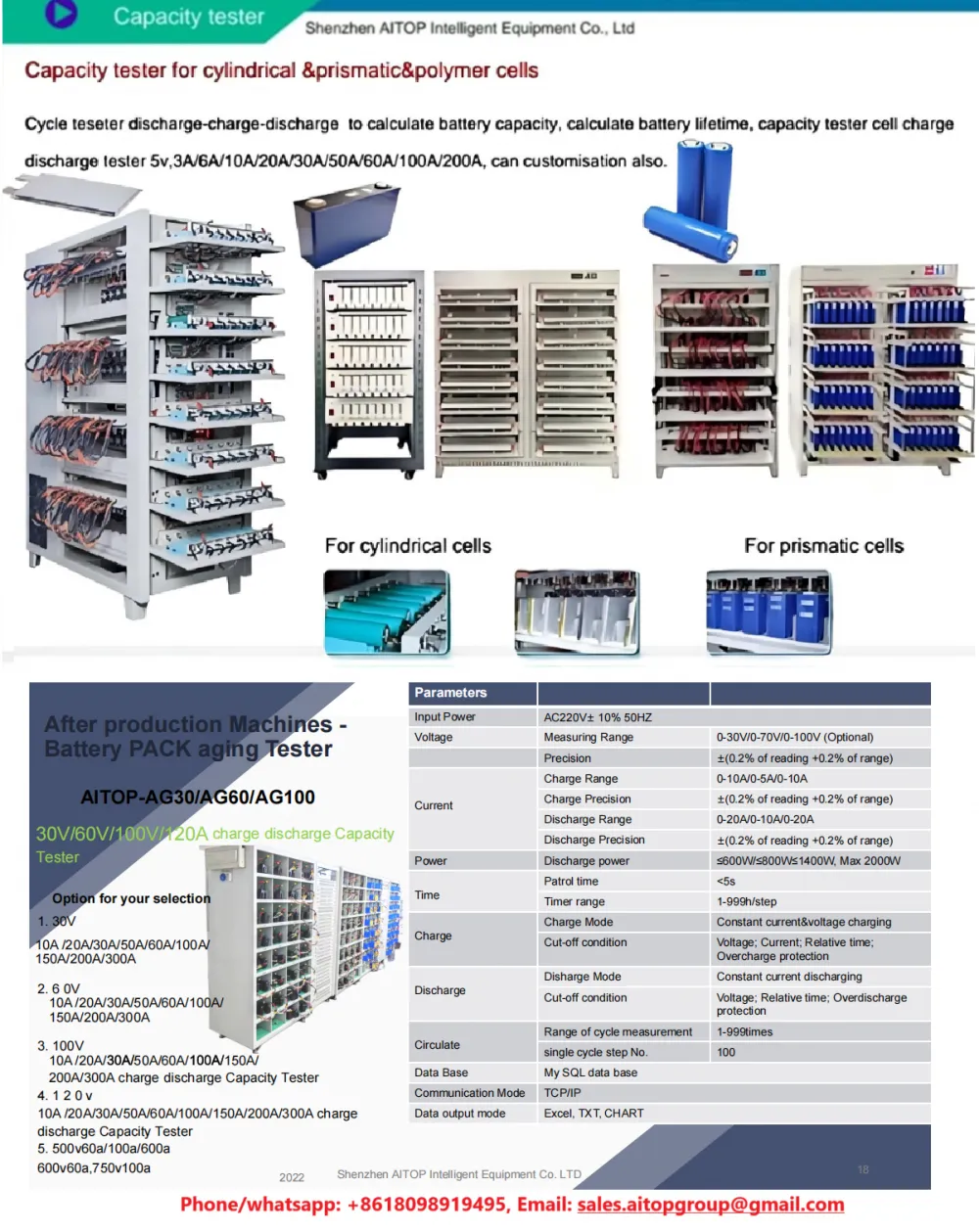

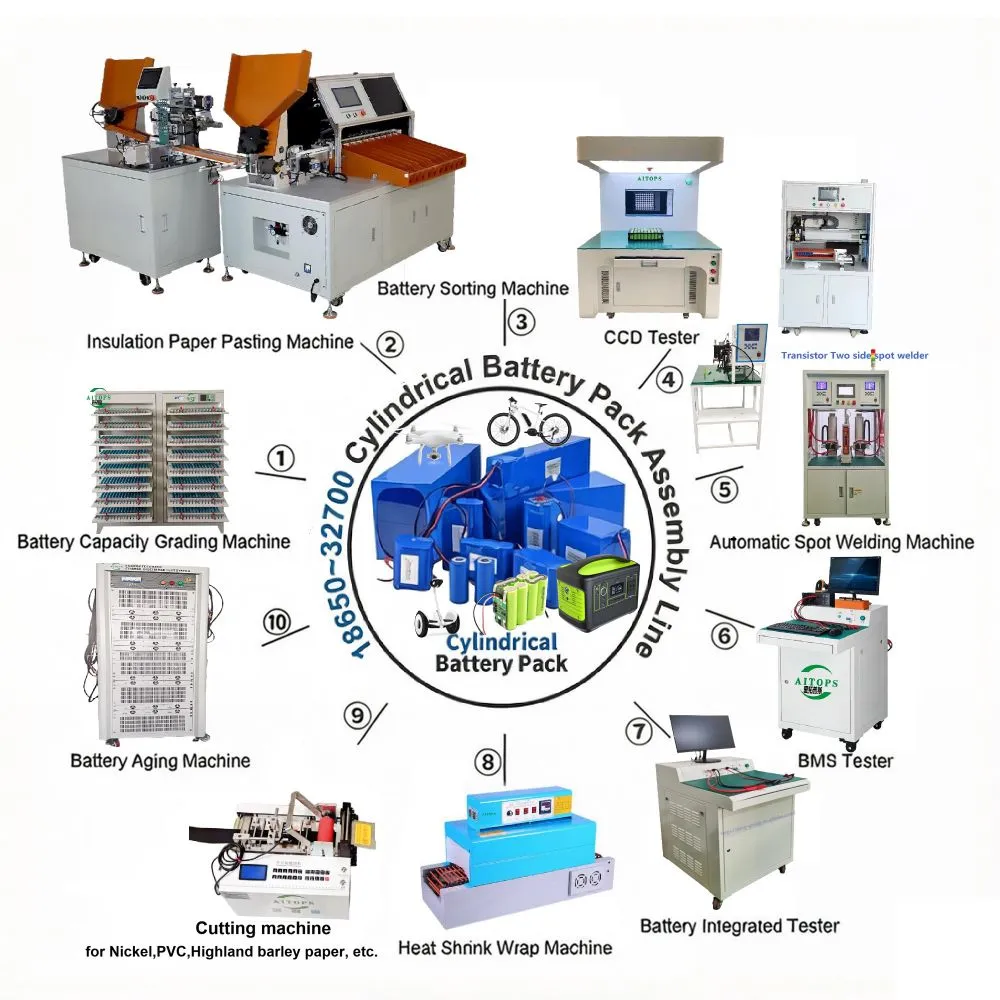

 We  AITOP provide all kind of lithium battery pack assembly machines and solutions with good quality and services. Our products including: 1.IR tester 2.Capacity tester for cylindrical &prismatic&polymer cells 3.BMS tester 4.Sorting machine for common use 5.Insulation paper sticker machine 6.Manual spot welding machine 7.Automatic spot welding machine 8.Battery pack integrated tester 9.Battery pack charging discharging aging machine battery pack charge discharge tester 10v,15v,20v,30v,60v,70v,100v,120v capacity tester cell charge discharge tester 5v,3A/6A/10A/20A/30A/50A/60A/100A/200A Bms tester 16 series 20s 24s 32s,48Series EOL battery pack function tester 100v 120A 200A,-1500V 10.PVC shrinking machine 11. Nickel plate&PVC cutting machine 12.Laser welding machine，battery cell stacking 13.Wire bonding machine 5V series 5V6A 5V10A 5V30A 5V60A 5V100A 5V120A 5V240A... 15V series 15V10A 15V30A... 20V series 20V5A 20V10A 20V20A... 30V series 30V10 30V20A 30V30A 30V50A 30V60A 30V100A 30V200A. ..... 60V series 60V10A 60V20A 60V30A 60V40A 60V50A 60V60A 60V100A 60V150A 60V200A 60V300A... 100V series 100V10A 100V20A 100V30A 100V50A 100V60A 100V100A 100V150A 100V300A... 120V series 120V10A 120V20A 120V30A 120V60A 120V100A 120V120A 120V300A... 150V series 150V10A 150V20A 150V40A 150V80A... Energy saving aging meter is available only above 30V，Dear,Elevate Your Business with New Energy Lithium Battery Pack Equipment - Create More Value and Earn More for you !our main products: 1. cylindrical Battery PACK machines 2. Automatic prismatic&polymer Battery PACK Assembly Line,Any interested in us,please feel free to contact with us sales.aitopgroup(@)gmail.(com)
