how to assmebly ESS Battery Pack Assembly,AITOP machine turnkey solution (Prismatic LithiumBattery)

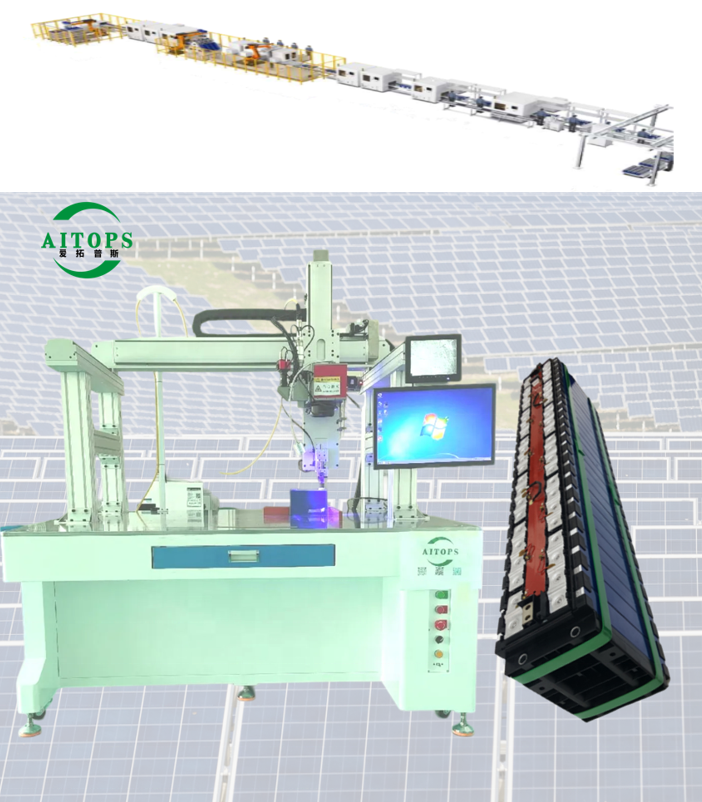

ESS Battery Pack Assembly Line (Prismatic Lithium-Ion Battery)
Item: AITOP Energy Storage System (ESS) Battery Pack Assembly Line
Battery Type: Prismatic Lithium-Ion Battery
Product Category: AITOP ESS Lithium-Ion Battery Pack Module Assembly Line
Product Description
This ESS battery pack assembly line is a professional automated production system specifically designed for manufacturing prismatic lithium-ion battery packs used in Energy Storage Systems (ESS). Prismatic lithium-ion batteries are widely adopted in renewable energy storage, electric vehicles, consumer electronics, and industrial energy storage scenarios due to their high energy density, compact structure, and stable performance—making them an ideal choice for ESS applications that require efficient energy storage and long-term reliability.

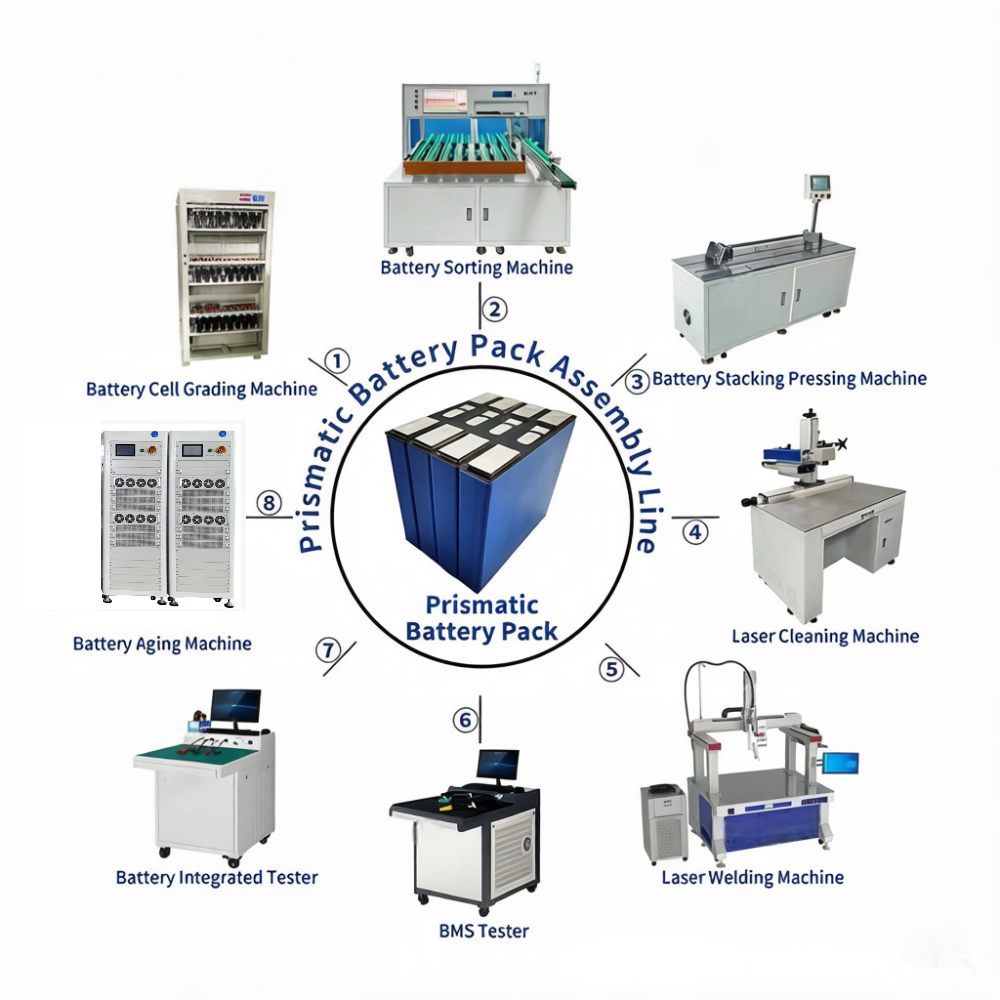

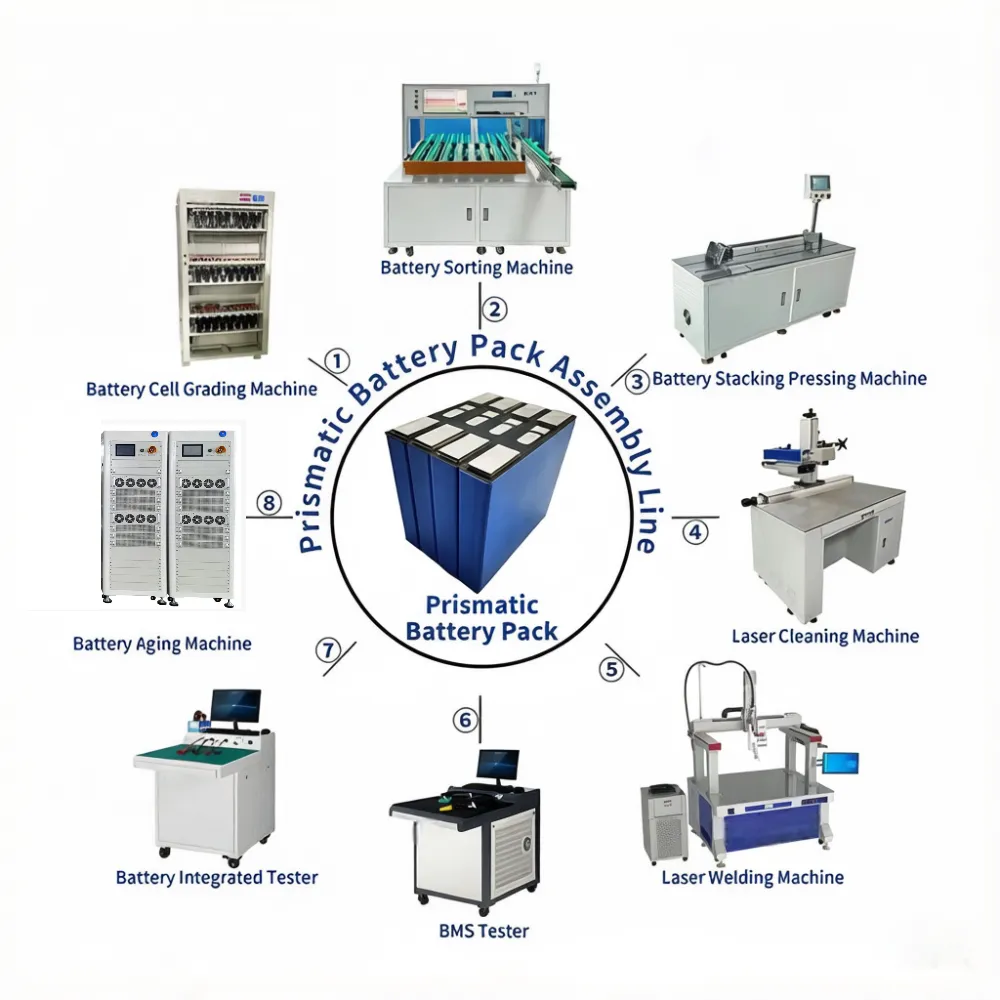

The assembly line integrates a complete set of specialized equipment and standardized processes, covering the entire production cycle of ESS battery pack modules from cell preparation to finished product testing. It is engineered to achieve efficient, precise, and consistent assembly, ensuring that all battery packs meet strict industry standards for performance, safety, and quality. Below are the key components and detailed specifications of the assembly line:
Product Name | Description |
|---|---|
Battery Cell Grading Machine | Prismatic Battery Tester, 5V 100A, 32ch/48ch/64 Channels (for accurate cell performance testing and grading to ensure consistency) |
Battery Sorting Machine | 8 Channels Battery Sorting Machine (for classifying graded cells by performance parameters to optimize battery pack consistency) |
Battery Stacking Pressing Machine | Production capacity: 50 groups/hour (each group contains 10 prismatic battery cells; for precise stacking and pressing of cells to form modules) |
Laser Clearing Machine | Power options: 30W, 50W, 100W (for cleaning battery cell surfaces to ensure stable welding quality) |
Laser Welding Machine | Power options: 1500W, 2000W, 3000W, 6000W (for high-strength, high-precision welding of cell tabs and module connections) |
BMS Tester | Series options: 24-32Series; Current options: 200-500A (for testing the Battery Management System to ensure accurate monitoring and protection of battery packs) |
Battery Pack Comprehensive Tester | Voltage range: 100V-150V; Peak current options: 200-250A (for comprehensive performance testing of finished battery packs, including voltage, current, and safety performance) |
Battery PACK Charge discharge tester Machine | Model 1: 30V 10A Charging / 20A Discharging Aging MachineModel 2: 70V 5A Charging / 10A Discharging Aging MachineModel 3: 100V 10A Charging / 20A Discharging Aging MachineGeneral Specification: Voltage range 20V-1650V, Discharge current range 10A-1200A (for simulating long-term use scenarios to test battery pack stability and service life) |

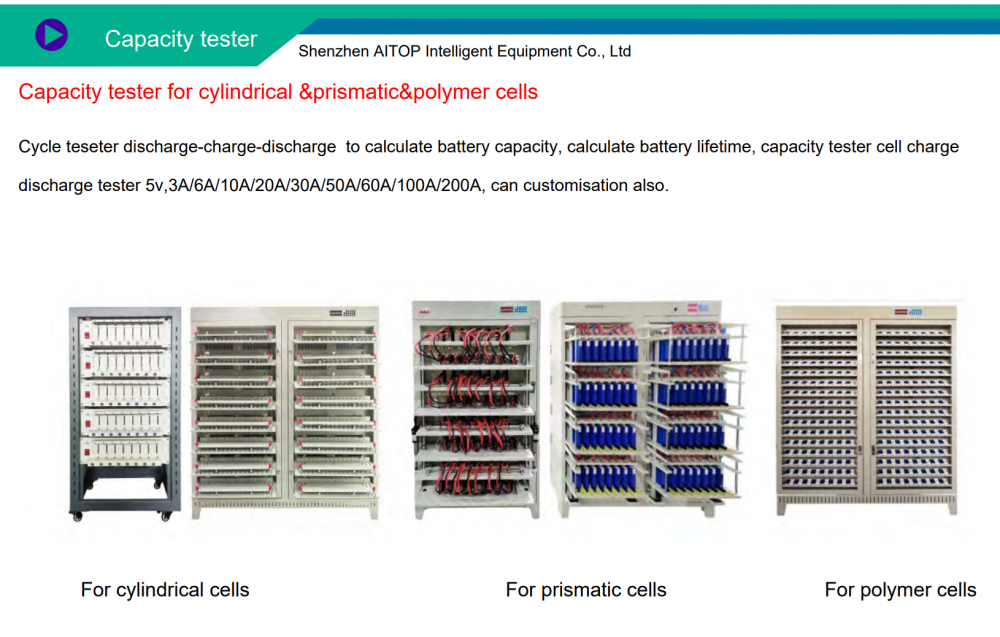

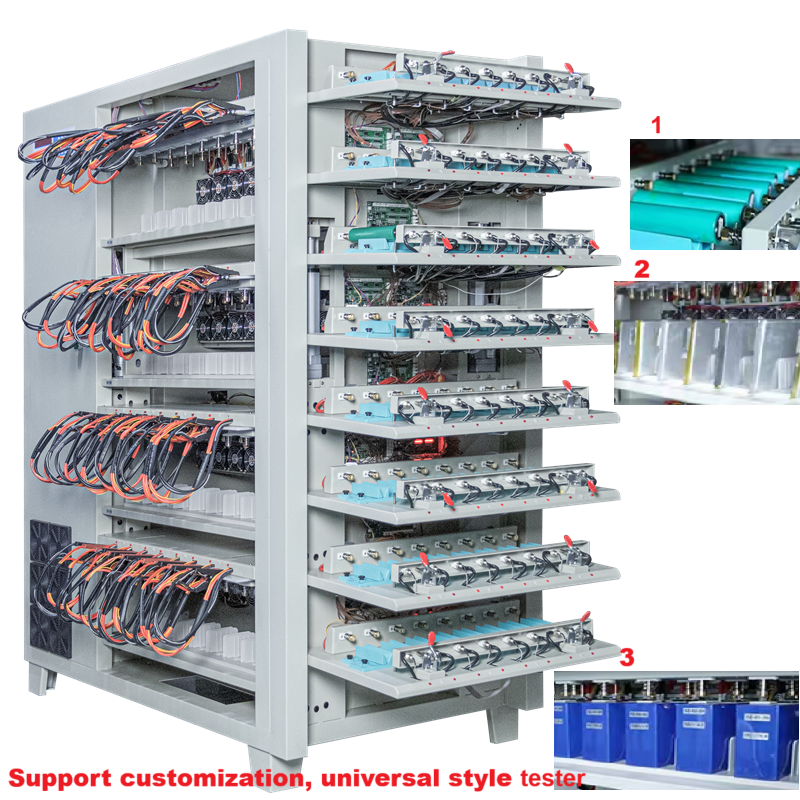

Battery Cell Grading Machine:

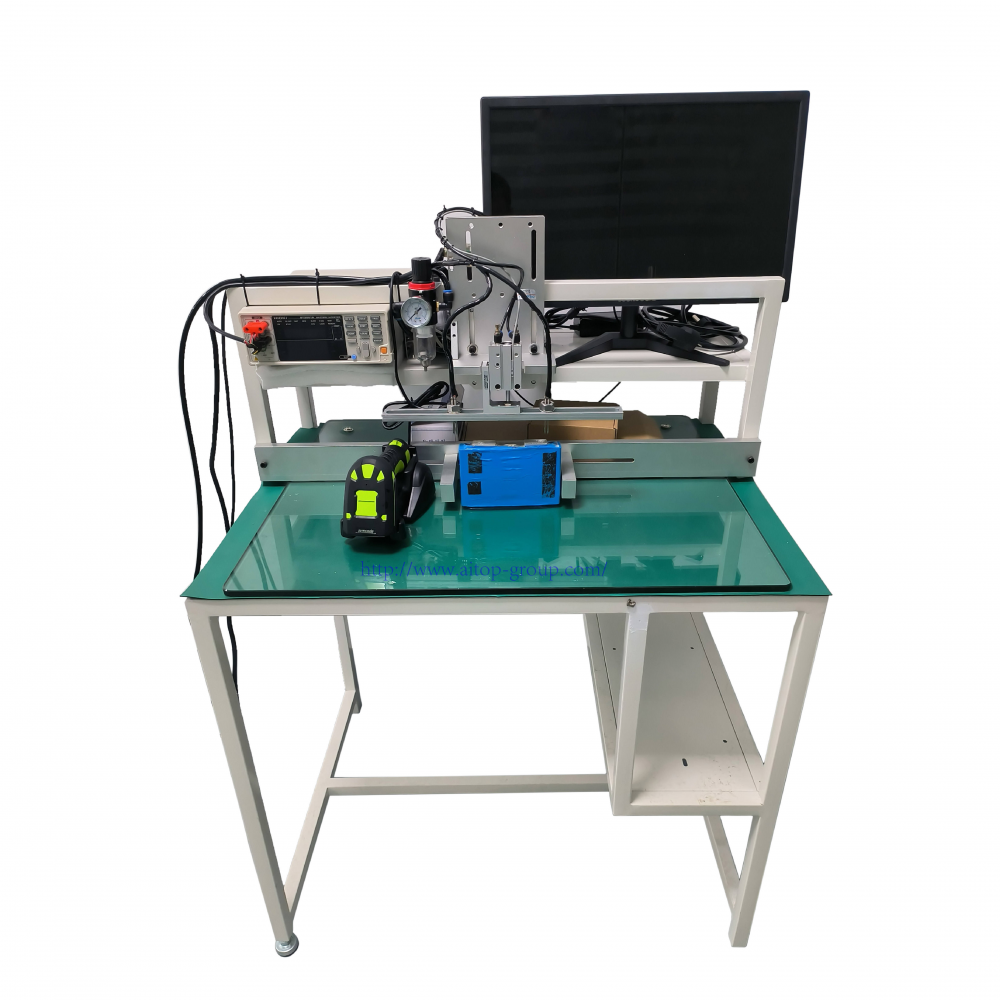

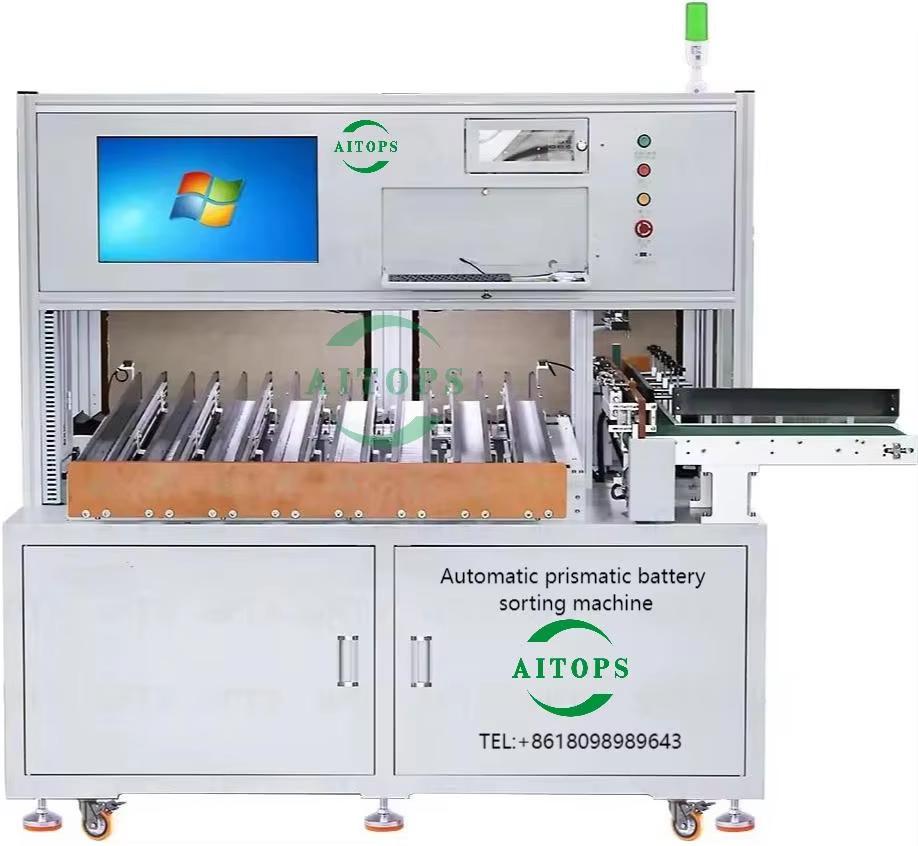

Battery Sorting Machine:

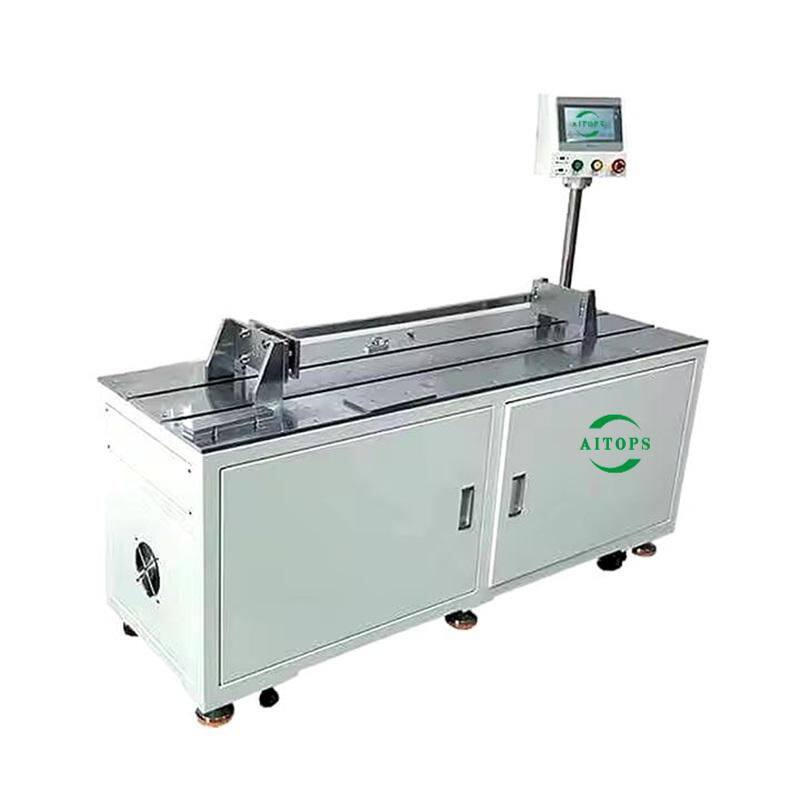

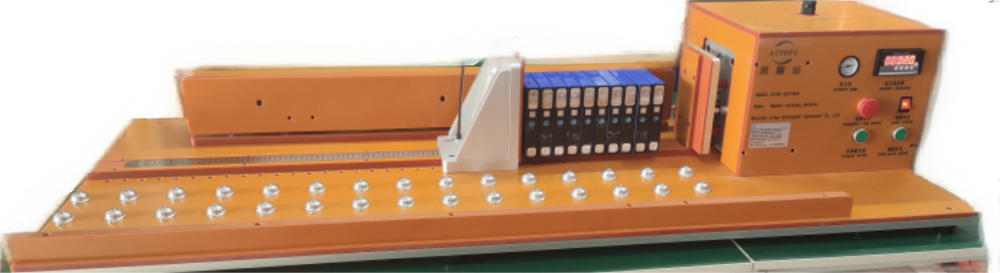

Battery Stacking Pressing Machine:

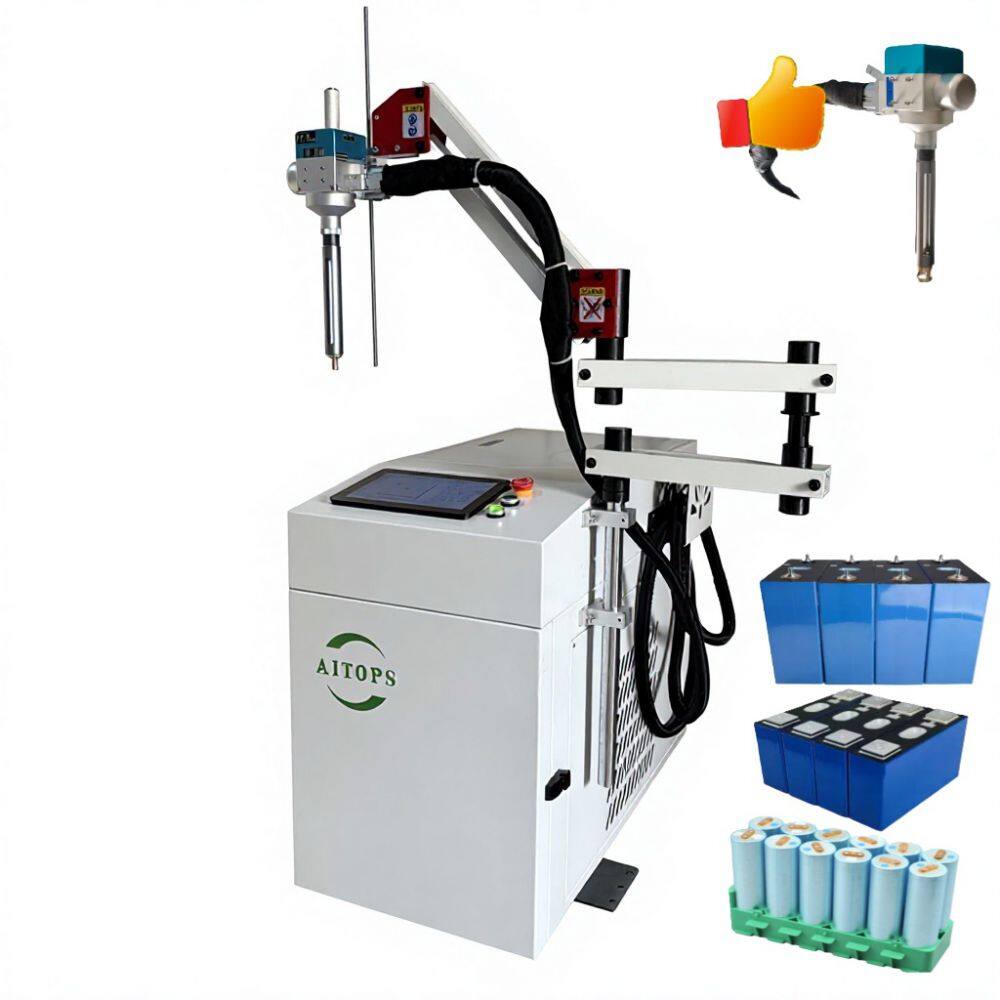

Laser Welding Machine:

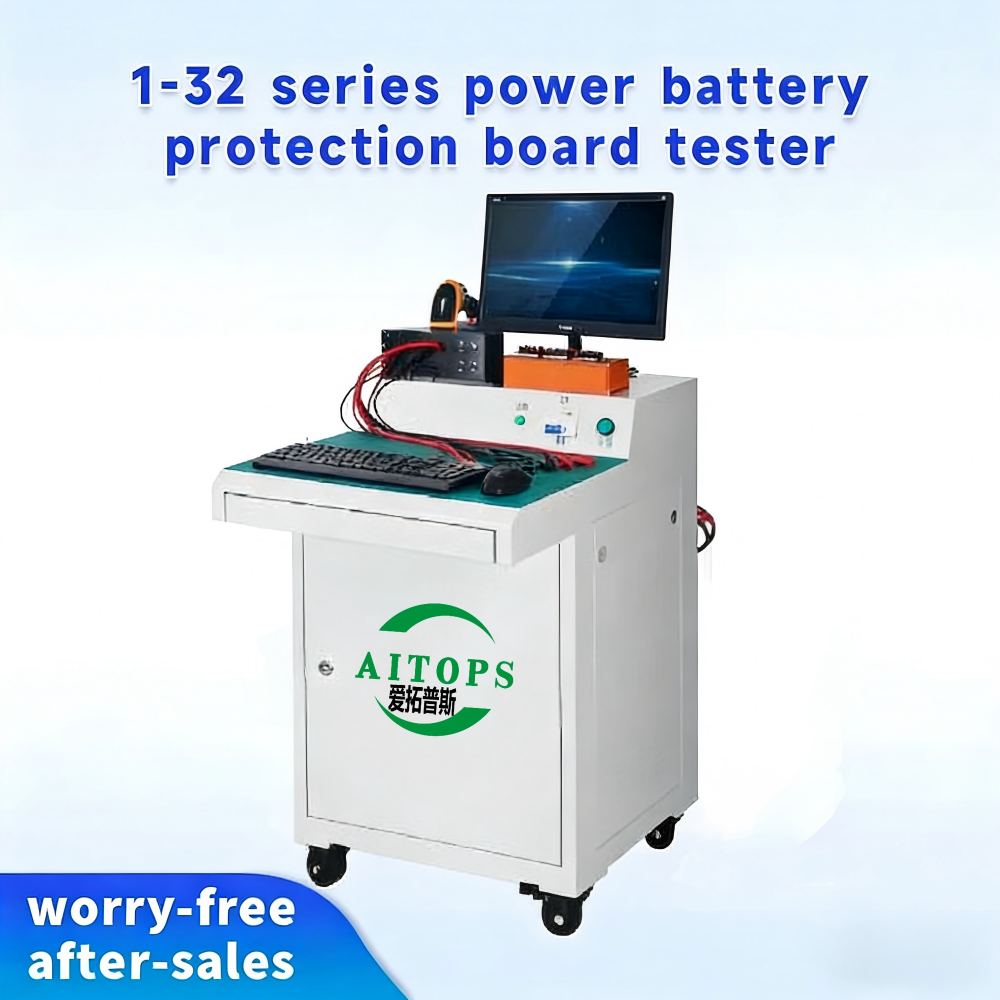

BMS TESTER:

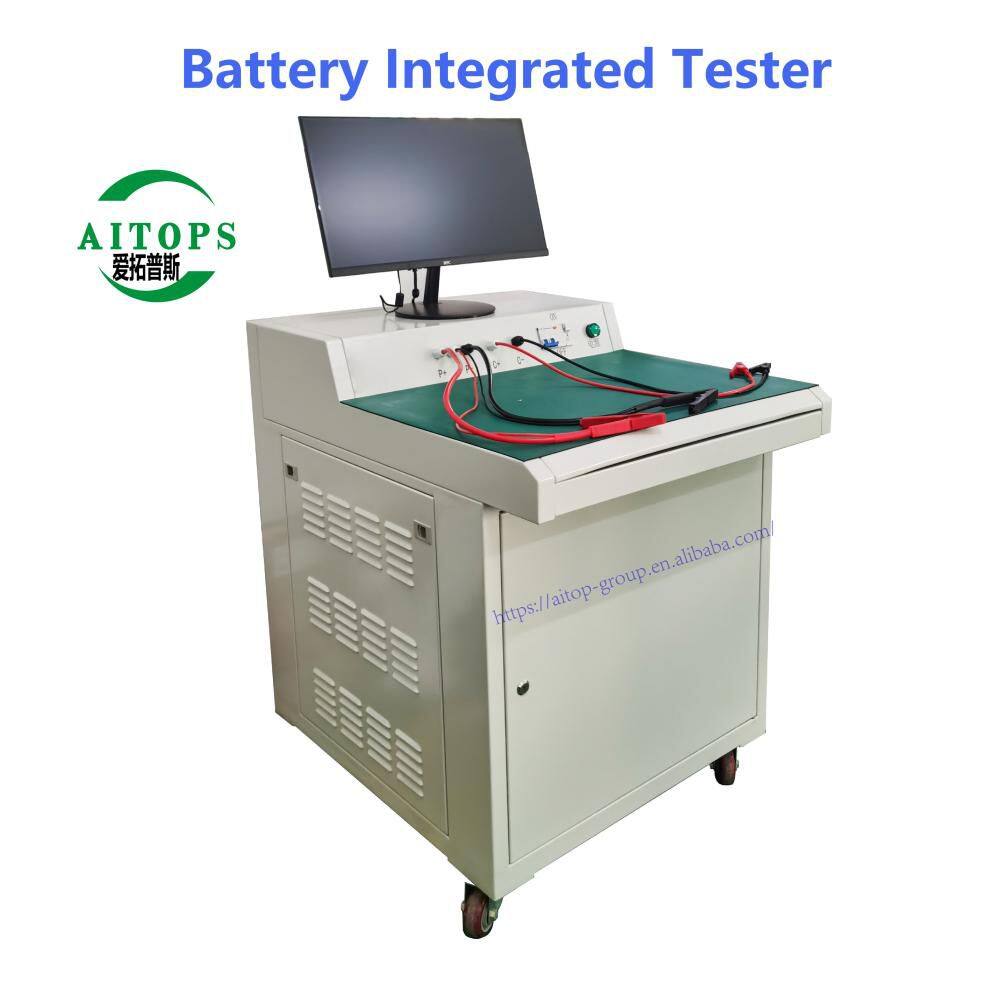

Battery Pack Comprehensive Tester

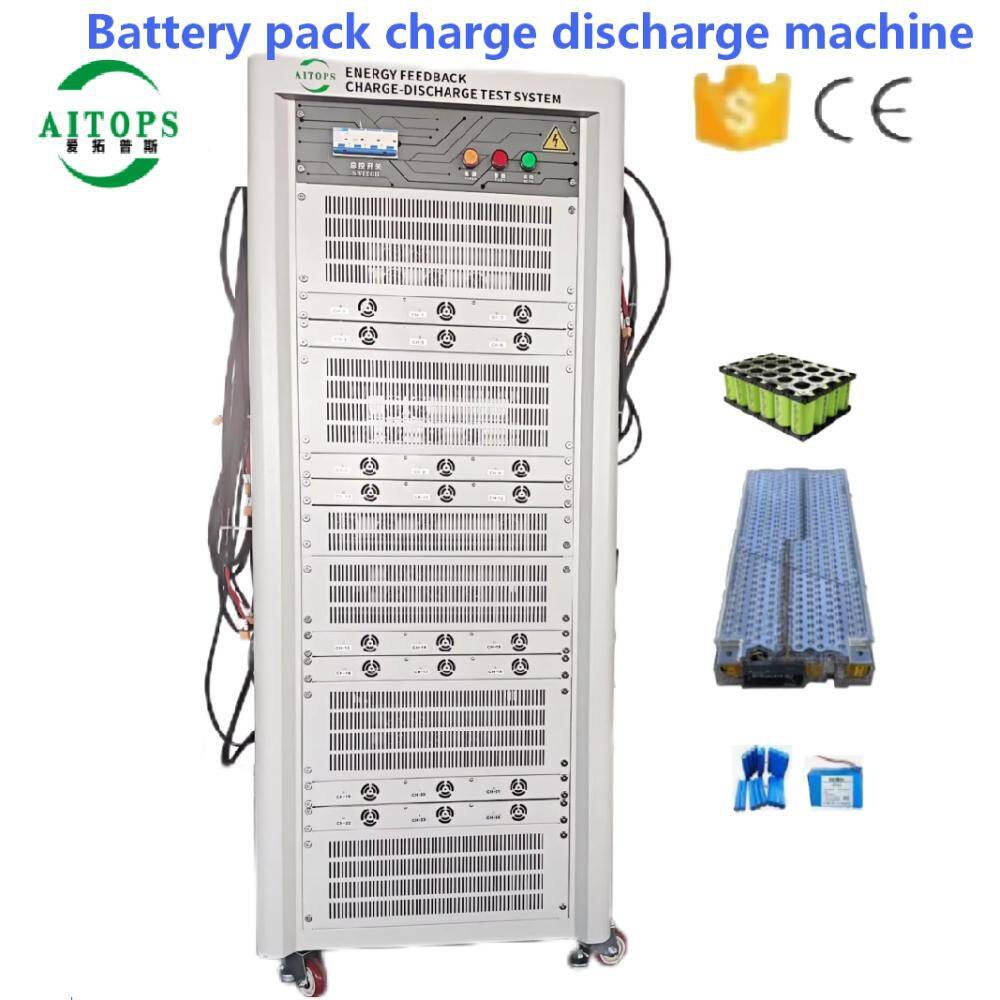

Battery Pack Charge discharge Tester:
machine Application: Power Tools battery
Application: EBoats battery
Application: Uninterruptible Power Supplies battery
Application: Solar Energy Storage Systems battery
Application: Golf Carts battery
Application: Electric Power Systems battery
Application: Electric Bicycles/Scooters battery
Application: Electric Forklifts battery
Application: UPS battery
Application: electric vehicles battery
Application: Drone battery
Application: Robot Vacuum Cleaner battery
